Ü  Physical file

·         It is a file which. Contains the data in predefined structured format.

·         It’s type PF. By using CRTPF command to create PF.

·         Maximum number of fields included in a PF is 8000.

·         Maximum no of key fields included is 120.

·         The structure of the PF is given below:

PHYSICAL FILE INTERNAL STRUCTURE

TYPE SPECIFIC ATTRITIBUTE

TYPE INDEPENDENT ATTRIBUTE

RECORD FORMAT

KEYED ACCESS PATH

RECORDS


TYPE SPECIFIC ATTRIBUTE: Specific to its type

TYPE INDEPENDENT ATTRIBUTE: Creation date, author, size, expiration detail

KEYED ACCESS PATH: An area within a physical file obj where key field data is stored in the order along with their RRN





Ü Levels of entries in physical file


Columns . . . :    1  71           Browse                         AMINEM/DDSSRC
SEU==>                                                                  ACCOUNT
FMT PF .....A..........T.Name++++++RLen++TDpB......Functions++++++++++++++++++
*************** Beginning of data *****************************

0001.00	     A				    UNIQUE        >>>>> FILE LEVEL
0002.00      A          R ACCOUNT             >>>>> RECORD FORMAT LEVEL
0003.00      A            ACLEVELID      2P 0
0004.00      A            ACORGCOD       3P 0 >>>>> FIELD LEVEL
0005.00      A            ACCOUNTNUM    12P 0
0006.00      A            ACCURRENCY     3A
0007.00      A            ACNAME        20A
0009.00      A          K ACLEVELID
0010.00      A          K ACORGCOD            >>>>> KEYFIELD LEVEL
0011.00      A          K ACCOUNTNUM
0012.00      A          K ACCURRENCY
****************** End of data ********************************





       I.            File level entries (optional): File level entries give the system information of the entire file. UNIQUE, LIFO, FIFO, FCFO, REF are the keywords used at file level.

UNIQUE: A record cannot be entered or copied into a file if its key value is same as the key value of a record already existing in the file.

FIFO: The duplicate key records will retrieved in first in first out order.
LIFO
: The duplicate key records will retrieved in last in first out order.
FCFO
: The duplicate key records will retrieved in first changed first out order.

REF: This keyword is used to specify the name of the file from which the fields are taking definition.



    II.            Record format level entries: For a PF the record format name is specified along with an optional text description. The record level entries can be FORMAT, TEXT.

FORMAT:

This record-level keyword specifies that the record format being define is to share the field specifications of a previously defined record format. The name of the record format being defined must be the name of the previously defined record format.

             The format of this keyword is:

  FORMAT (LIB-NAME / FILE-NAME)

 TEXT:

 This record level keyword is used to supply a text description of the record format and it is used for     documentation purposes only.

 The format of this keyword is:

 TEXT (‘description’)



   III.            Field level entries: The field names and field lengths are specified along with and optional text description for each field. (ALIAS, ALWNULL, CCSID, CHECK, CHKMSGID, CMP, COLHDG, COMP, DATFMT, DATSEP, DFT, EDTCDE, EDTWRD, REFFLD, REFSHIFT, TEXT, TIMEFMT, TIMESEP, VALUES, VARLEN)



  IV.            Key field level entries: The field names used as key fields are specified. (DESCEND, SIGNED, ABSVAL, UNSIGNED, ZONE, NOALTSEQ, DIGIT)





Ü  File level keywords FIFO, LIFO, FCFO

FIFO: The duplicate key records will retrieved in first in first out order.
LIFO: The duplicate key records will retrieved in last in first out order.
FCFO: The duplicate key records will retrieved in first changed first out order.

ü  When the FIFO, FCFO, or LIFO keyword is not specified, no guaranteed order is   specified for retrieving records with duplicate keys.

ü  No specific order for duplicate key fields allows more access path sharing, which can improve performance.



Arranging duplicate keys:

ü  If you do not specify the Unique (UNIQUE) keyword in data description specifications (DDS), you can specify how the system stores records with duplicate key values.

ü  You specify that records with duplicate key values are stored in the access path in one of the following ways:

Last-in-first-out (LIFO): When the LIFO keyword is specified, records with duplicate key values are retrieved in LIFO order by the physical sequence of the records. Here is an example of DDS using the LIFO keyword.


      A                                    LIFO
      A          R REC2
      A            .
      A            .
      A            .
      A          K EMPNO



Assume that a physical file has the FIFO keyword specified (records with duplicate keys are in FIFO order), and that the following table shows the order in which records were added to the file.

Order in which records were added to file

          Key value

1

A

2

B

3

C

4

C

5

D

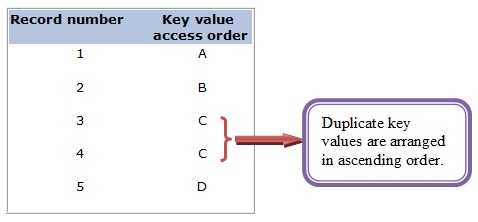

The sequence of the access path is FIFO, with ascending key values.

Records 3 and 4, which have duplicate key values, are in FIFO order. That is, because record 3 was added to the file before record 4, it is read before record 4.

                                                                    This would become apparent if the records were read in descending order. This can be done by creating a logical file based on this physical file, with the DESCEND keyword specified in the logical file.

The sequence of the access path is FIFO, with descending key values.

Record number

  Key value access order

5

D

3

C

4

C

2

B

1

A

If the key value of physical record 1 is changed to C, the sequence of the access path for the physical file is FIFO, with ascending key values.

Record number

   Key value access order

2

B

1

C

3

C

4

C

5

D

Finally, changing to descending order, the new sequence of the access path for the logical file is FIFO, with descending key values.

Record number

    Key value access order

5

D

1

C

3

C

4

C

2

B

After the change, record 1 does not appear after record 4, even though the contents of the key field were updated after record 4 was added.

The FCFO order of records with duplicate key values is determined by the sequence of updates made to the contents of the key fields. In the preceding example, after record 1 is changed such that the key value is C, the sequence of the access path is FCFO, with ascending key values only.

  Record number

   Key value access order

2

B

3

C

4

C

1

C

5

D



Ü File level keywords REF

USE OF REFERENCE



Columns . . . :    1  71           Browse                        AMINEM/DDSSRC
SEU==>                                                                   REFER
FMT PF .....A..........T.Name++++++RLen++TDpB......Functions++++++++++++++++++
       *************** Beginning of data *************************************
0002.00      A          R REF
0003.00      A            RAC1           2P 0       COLHDG('LEVEL ID')
0004.00      A            RAC2           3P 0       COLHDG('ORG CODE')
0005.00      A            RAC3          12P 0       COLHDG('ACCOUNT NUM')
0006.00      A            RAC4           3A         COLHDG('ACCOUNT CURRENCY')
0007.00      A            RPOSTCODE      2P 0       COLHDG('POST CODE')
0008.00      A            RCOUNTRY       3P 0       COLHDG('COUNTRY CODE')
0009.00      A            RNAME         20A         COLHDG('NAME')
0010.00      A            RDATE          3P 0       COLHDG('DATE')
          ****************** End of data ****************************************







Now we can refer the file ‘REFER’ to take the field definition in the new file.




Columns . . . :    1  71           Browse                        AMINEM/DDSSRC
SEU==>                                                                  USEREF
FMT PF .....A..........T.Name++++++RLen++TDpB......Functions++++++++++++++++++
*************** Beginning of data *************************************
0002.00      A                                      REF(REFER)
0003.00      A          R USEREF
0004.00      A            ACCLVL    R               REFFLD(RAC1 REFER) >>>>>>  field name and
0005.00                                             ALIAS(ACC_LVL_ID)     referred file name
0007.00      A            ACCORG    R               REFFLD(RAC2 REFER)
0008.00                                             ALIAS(ACC_ORG_CODE)
0009.00      A            ACCNUM    R               REFFLD(RAC3 REFER)
0010.00                                             ALIAS(ACC_NUM)
0011.00      A            ACCCUR    R               REFFLD(RAC4 REFER)
0012.00                                             ALIAS(ACC_CUR)
0013.00      A            ACCNAME   R               REFFLD(RNAME REFER)
0014.00                                             ALIAS(ACC_NAME)

  ****************** End of data ****************************************





Both(COLHDG & ALIAS) are used to identify fields. COLHDG &  ALIAS is the Description of fields. The difference is that in ALIAS we can access data based on that ALIAS name, while COLHDG is not allowed. Suppose in PF field name as DES78, give ALIAS as Description78, then user can access data from using Description78.



Ü   Related Command



Ø  Create Physical File (CRTPF)



CRTPF FILE(AMITNEM/OBJ) SRCFILE(AMINEM/QDDSSRC) SRCMBR(OBJ_SRC)



ü  The above command is similar to taking option-14 against the source member in member PDM(WRKMBRPDM).



ü  If there is any data in the physical file and you are using CRTPF/option-14, then all the data in the physical file will be lost.







Ø  Change Physical File (CHGPF)



CHGPF FILE(AMITNEM/OBJ) SRCFILE(AMINEM/QDDSSRC) SRCMBR(OBJ_SRC)



ü  If you don’t want to lose the data, but you want to compile the source member, then you can achieve this by CHGPF command.



ü  We generally use CHGPF to change the attribute which are highlighted below.




                          Change Physical File (CHGPF)

 Type choices, press Enter.

 Physical file  . . . . . . . . .                 Name
   Library  . . . . . . . . . . .     *LIBL       Name, *LIBL, *CURLIB
 System . . . . . . . . . . . . .   *LCL          *LCL, *RMT, *FILETYPE
 Source file  . . . . . . . . . .   *NONE         Name, *NONE
   Library  . . . . . . . . . . .                 Name, *LIBL, *CURLIB
 Expiration date for member . . .   *SAME         Date, *SAME, *NONE
 Maximum members  . . . . . . . .   *SAME         Number, *SAME, *NOMAX
 Access path size . . . . . . . .   *SAME         *SAME, *MAX4GB, *MAX1TB
 Access path maintenance  . . . .   *SAME         *SAME, *IMMED, *REBLD, *DLY
 Access path recovery . . . . . .   *SAME         *SAME, *NO, *AFTIPL, *IPL
 Force keyed access path  . . . .   *SAME         *SAME, *NO, *YES
 Member size:
   Initial number of records  . .   *SAME         1-2147483646, *NOMAX, *SAME
   Increment number of records  .   *SAME         0-32767, *SAME
   Maximum increments . . . . . .   *SAME         0-32767, *SAME

 Maximum file wait time . . . . .   30            Number, *SAME, *IMMED, *CLS
 Maximum record wait time . . . .   60            Number, *SAME, *IMMED, *NOMAX
 Share open data path . . . . . .   *SAME         *SAME, *NO, *YES
 Max % deleted records allowed  .   *NONE         1-100, *NONE, *SAME
 Reuse deleted records  . . . . .   *YES          *SAME, *YES, *NO
 Sort sequence  . . . . . . . . .   *HEX          Name, *SAME, *SRC, *JOB...

                                                                         Bottom
 F3=Exit   F4=Prompt   F5=Refresh   F12=Cancel   F13=How to use this display
 F24=More keys





Can LEVEL CHECK ERROR occur if we do CHGPF?



It depends on the value that we have set for LVLCHK (Record format level check) attribute.



If its value is *YES then the record format level identifier is checked when the file is opened and if it doesn’t match it throws the error.



If its value is *NO, then the record format level identifier is not checked, hence no error.





Ø  CHGPFM




                     Change Physical File Member (CHGPFM)

 Type choices, press Enter.

 Physical file  . . . . . . . . . > MASTER        Name
   Library  . . . . . . . . . . . >   AMINEM      Name, *LIBL, *CURLIB
 Member . . . . . . . . . . . . . > *FIRST        Name, *FIRST
 Source type  . . . . . . . . . .   *NONE         Name, *SAME, *NONE
 Expiration date for member . . .   *NONE         Date, *SAME, *NONE
 Share open data path . . . . . .   *NO           *SAME, *YES, *NO
 Text description   . . . . . . .   ACCOUNT RELATED INFORMATION








Ø  Display file description(DSPFD)

§  It is used to display the details about the file.



Ø  Display file field description(DSPFFD)

§  It is used for listing details about individual fields.
