Ü MOVE (P)



Factor 1

Op-code

Factor 2

Result Field

Resulting Indicators

       HI                            LO                      EQ

Data attribute

MOVE(P)

Source field

Target field Padded on the left









o   If factor 2 is shorter than the length of the result field, a P specified in the operation extender position causes the result field to be padded on the left after the move occurs.



Example




Columns . . . :    6  80                     Browse                          AMINEM/QRPGLESRC
SEU==>                                                                               OP_MOVE1
FMT D  DName+++++++++++ETDsFrom+++To/L+++IDc.Keywords+++++++++++++++++++++++++++++
*************** Beginning of data ****************************************************
0001.00 D A1              S              5A   INZ('AAAA') VARYING                       130129
0002.00 D A2              S             10A   INZ('AAAAAAAA') VARYING                   130129
0003.00 D A3              S             20A   INZ('AAAAAAAAAAAA') VARYING               130129
0004.00 D B1              S              5A   INZ('BBBBB')                              130129
0005.00 D B2              S             10A   INZ('BBBBBBBBBB')                         130129
0006.00 D B3              S             20A   INZ('BBBBBBBBBBBBBBBBBBBB')               130129
0007.00 D C1              S              5A   INZ('CCC') VARYING                        130129
0008.00 D C2              S             10A   INZ('CCCCCCC') VARYING                    130129
0009.00 D C3              S             20A   INZ('CCCCCCCCCCCCCCCCC') VARYING          130129
0010.00 C     A1            DSPLY                                                       130129
0011.00 C     A2            DSPLY                                                       130129
0012.00 C     A3            DSPLY                                                       130129
0013.00 C     B1            DSPLY                                                       130129
0014.00 C     B2            DSPLY                                                       130129
0015.00 C     B3            DSPLY                                                       130129
0016.00 C     C1            DSPLY                                                       130129
0017.00 C     C2            DSPLY                                                       130129
0018.00 C     C3            DSPLY                                                       130129
0019.00 C                   MOVE(P)   A1            B2                                  130129
0020.00 C                   MOVE(P)   A2            B3                                  130129
0021.00 C                   MOVE(P)   A3            B1                                  130129
0022.00 C                   MOVE(P)   B1            C3                                  130129
0023.00 C                   MOVE(P)   B2            C1                                  130129
0024.00 C                   MOVE(P)   B3            C2                                  130129
0025.00 C                   MOVE(P)   C1            A3                                  130129
0026.00 C                   MOVE(P)   C2            A1                                  130129
0027.00 C                   MOVE(P)   C3            A2                                  130129
0028.00 C     A1            DSPLY                                                       130129
0029.00 C     A2            DSPLY                                                       130129
0030.00 C     A3            DSPLY                                                       130129
0031.00 C     B1            DSPLY                                                       130129
0032.00 C     B2            DSPLY                                                       130129
0033.00 C     B3            DSPLY                                                       130129
0034.00 C     C1            DSPLY                                                       130129
0035.00 C     C2            DSPLY                                                       130129
0036.00 C     C3            DSPLY                                                       130129
0037.00 C                   SETON                                            LR         130129
****************** End of data *******************************************************



OUTPUT

DSPLY  AAAA

DSPLY  AAAAAAAA

DSPLY  AAAAAAAAAAAA

DSPLY  BBBBB

DSPLY  BBBBBBBBBB

DSPLY  BBBBBBBBBBBBBBBBBBBB

DSPLY  CCC

DSPLY  CCCCCCC

DSPLY  CCCCCCCCCCCCCCCCC

DSPLY  AAAA

DSPLY     AAAAA

DSPLY           AAA

DSPLY  AAAAA

DSPLY        AAAA

DSPLY              AAAAAAAA

DSPLY  AAA

DSPLY  AAAAAAA

DSPLY              AAAAA







Explanation of OUTPUT

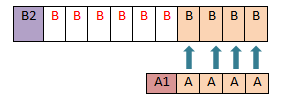

1.  MOVE(P)   A1            B2





          Result:  B2=       AAAA



      All the above B in red will be removed while padding.
